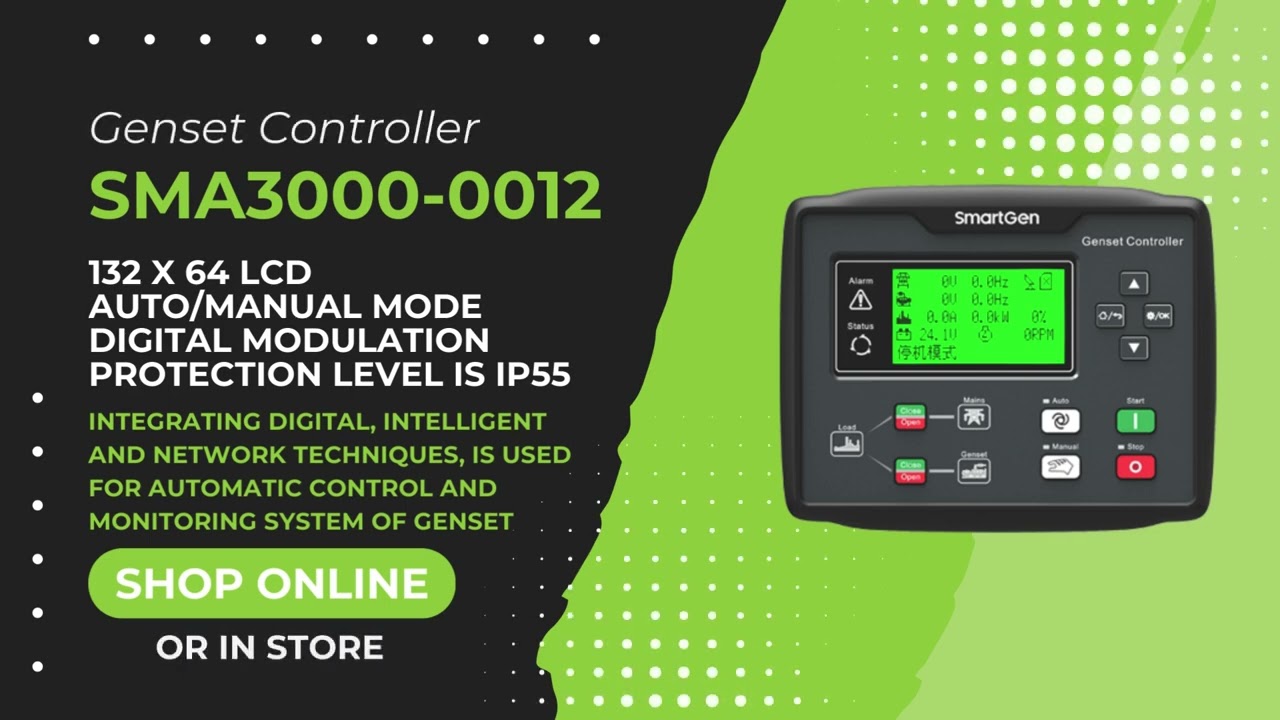

SMA3000-0012 Genset Controller

R3,553.50 Incl. Vat

Part number for reference only HGM6120N – SMA3000-0012 Genset Controller.
We do have stock at our warehouse, kindly use the request a quote to order your Genset Controller.

In stock

SKU: SMA3000-0012 Category:
Description

Description

This SMA3000-0012 Genset Controller series automatic controller, integrating digital, intelligent and network techniques, is used for automatic control and monitoring system of genset. It can carry out functions of automatic start/stop, data measurement, alarm protection and three “remote” (remote control, remote measure and remote communication). The controller uses LCD display, optional display interface including Chinese, English, Spanish, Russian, Portuguese, Turkey, Polish and French with easy and reliable operation.

The SMA3000-0012 Genset Controller series automatic controller uses micro-processing technique which can achieve precision measurement, value adjustment, timing and threshold setting etc.. All the parameters can be configured from front panel or use USB interface (or RS485 interface) to adjust via PC. It can be widely used in all types of automatic control system for its compact structure, simple connections and high reliability.

SMA3000-0012 Genset Controller Technical Specifications

  • Working Voltage: DC8.0V to DC35.0V, continuous
  • Power Consumption: <3W(Standby mode: ≤2W)
  • AC Alternator Frequency: 50Hz/60Hz
  • Rotate speed sensor Voltage: 1.0V to 24V (RMS)
  • Rotate speed sensor Frequency: 10,000 Hz (max.)
  • Start Relay Output: 16 A DC28V at supply voltage
  • Fuel Relay Output: 16 A DC28V at supply voltage
  • Auxiliary Relay Output 1: 7 A DC28V at supply voltage
  • Auxiliary Relay Output 2: 7 A AC250V volt-free output
  • Auxiliary Relay Output 3: 16 A AC250V volt-free output
  • Auxiliary Relay Output 4: 16 A AC250V volt-free output
  • Overall Dimensions: 209mm x 166mm x 45mm
  • Panel Cutout: 186mm x 141mm
  • C.T. Secondary Current: 5A (rated)
  • Working Condition: Temperature: (-25~70)ºC; Humidity: (20~90)%
  • Storage Condition: Temperature: (-30~+80)ºC
  • Protection Level: IP55 Gasket
  • Insulation Intensity: Apply AC2.2kV voltage between high voltage terminal and low voltage terminal. The leakage current is not more than 3mA within 1min.
  • Weight: 0.56kg

SMA3000-0012 Genset Controller Performance Characteristics

  • 132*64 LCD display with backlight, optional language interface (Chinese, English, Spanish, Russian, Portuguese, Turkey, Polish and French), push-button operation
  • Acrylic screen, improved wearable and scratch resistance property
  • Silica-gel panel and keys can well adapt to higher and lower temperature
  • With RS485 communication port, can achieve “three remote” functions via MODBUS protocol
  • With CANBUS port which can be connected to electronic injection with J1939, it not only can monitor frequently-used data (such as water temperature, oil pressure, rotated speed and fuel consumption, etc.) but also can control start, stop, high speed and low speed (controller with CANBUS port is needed) via CANBUS port
  • Adapt to 3P4W, 3P3W, 1P2W and 2P3W (120V/240V), 50Hz/60Hz AC power system
  • Can measure and display 3 phase voltage, 3 phase current, frequency, power parameter of mains/gens
